replica • replica

library(replica)

Motivation

replica is an R package for generating synthetic populations of individual agents and households from aggregated data.

The package has been developed to support health-economic microsimulation modelling and other applications requiring realistic synthetic populations.

replica provides tools for:

creating synthetic agents from aggregate count data;
assigning demographic and behavioural attributes using contingency tables;
generating synthetic households; and
evaluating synthetic population quality.

replica implements an R version of the synthetic population generation methodology described by de Mooij et al. (2024) and additionally provides functionality for validation, visualisation and workflow integration within the R ecosystem.

Status

This development version of replica has been made available as part of the process of testing and documenting the library.

Note - the replica library is currently very experimental. It is still undergoing active development and testing. Function, class and method names, arguments and syntax may change without the use of deprecation conventions. This library should currently be used only for exploratory purposes.

The Population Generation Workflow

The workflow supported by replica can be summarised as:

Aggregate Counts ↓ make_agents() ↓ Synthetic Agents ↓ ReplicaAdder ↓ Enriched Population ↓ ReplicaStructure + ReplicaGrouper ↓ Synthetic Households ↓ Validation

Each stage is described in a dedicated vignette.

Core Concepts

Synthetic Agents

Synthetic agents are individual records representing people within a synthetic population.

The make_agents() function expands aggregate demographic counts into one row per synthetic individual.

Example:

age_group <- data.frame(
  age_group = c(
    "0-17",
    "18-64",
    "65+"
  ),
  count = c(
    200,
    600,
    200
  )
)

agents <- make_agents(
  age_group
)

Attribute Assignment

Synthetic populations often require additional characteristics beyond those available in the source data.

ReplicaAdder assigns new attributes while preserving known demographic relationships.

Examples include:

education;
employment status;
occupation;
income category; and
health status.

Household generation

Many modelling applications require individuals to be organised into households.

Household generation is controlled using:

ReplicaStructure
ReplicaGrouper

Household structures are generated while respecting demographic and geographic constraints.

Validation

Synthetic populations should be evaluated to ensure they reproduce the source distributions used during construction.

replica provides tools for:

contingency-table reconstruction;
goodness-of-fit statistics;
validation diagnostics; and
validation visualisations.

Vignettes

The package documentation follows the complete synthetic population generation workflow.

Vignette 1: Generating Synthetic Populations from Aggregated Data:

introduces make_agents(); and
demonstrates how aggregate count data can be converted into individual synthetic agents.

Vignette 2: Assigning Attributes Using Contingency Tables:

introduces ReplicaAdder; and
demonstrates how to enrich synthetic agents using contingency tables and demographic distributions.

Vignette 3: Generating Synthetic Households:

introduces ReplicaStructure and ReplicaGrouper; and
demonstrates how enriched agents can be organised into realistic household structures.

Vignette 4: Evaluating Synthetic Population Quality:

introduces validate_synthetic_population_fit(), plot_validation_distributions(), plot_validation_differences() and plot_validation_heatmap();
demonstrates how synthetic populations can be assessed and validated.

Example Workflow

The following example illustrates how the major components of replica fit together.

Create Synthetic Agents

age_gender <- data.frame(
  age_group = c("18-64","18-64","65+","65+"),
  gender = c("Male","Female","Male","Female"),
  count = c(10, 10, 10, 10))
agents <- make_agents(age_gender)

Assign Additional Attributes

education_table <- data.frame(
  age_group = c("18-64", "18-64", "18-64", "18-64",
                "65+",   "65+",  "65+",   "65+"),
  gender = c("Male", "Male", "Female", "Female",
             "Male", "Male", "Female", "Female"),
  education = c("Degree", "School","Degree", "School",
                "Degree", "School","Degree", "School"),
  count = c(60, 40, 55, 45, 30, 70, 25, 75)

)
adder <- ReplicaAdder(
  synth_pop = agents,
  contingency = education_table,
  target_attribute = "education",
  group_by = c("age_group","gender")

)
adder <- enhance(adder)
population <- adder@synth_pop

Generate Households

population[,neighb_code := "N1"]

population[,household_position := "Parent"]

population[age_group == "18-64",
           age := sample(18:64, .N, replace = TRUE)]

population[age_group == "65+",
           age := sample(65:95,.N, replace = TRUE)]

hh <- ReplicaStructure("CoupleHousehold")

hh <- renew(hh,
                 household_position = "Parent",
                 position_identifier = "adult",
                 amount = 2,
                 backup_position_identifiers = character())

hh@couple_gender_distribution <- c("Female|Male" = 1)

hh@couple_age_distribution <- c("-5-5" = 1)

hg <- ReplicaGrouper(df_synth_pop = population,
                       group_by = "neighb_code")

hg <- renew(hg, hh)

households <- enhance(hg)

Inspect Results

head(households$synthetic_population)
#>    agent_id age_group gender education neighb_code household_position   age
#>      <char>    <char> <char>    <char>      <char>             <char> <int>
#> 1: Agent_01     18-64   Male    Degree          N1             Parent    18
#> 2: Agent_02     18-64   Male    Degree          N1             Parent    42
#> 3: Agent_03     18-64   Male    Degree          N1             Parent    64
#> 4: Agent_04     18-64   Male    Degree          N1             Parent    54
#> 5: Agent_05     18-64   Male    Degree          N1             Parent    25
#> 6: Agent_06     18-64   Male    School          N1             Parent    50
#>    household_id
#>          <char>
#> 1:    SSH000005
#> 2:    SSH000001
#> 3:    SSH000007
#> 4:    SSH000004
#> 5:    SSH000002
#> 6:    SSH000009

head(households$synthetic_households)
#>   household_id neighb_code         hh_type hh_size
#> 1    SSH000001          N1 CoupleHousehold       2
#> 2    SSH000002          N1 CoupleHousehold       2
#> 3    SSH000003          N1 CoupleHousehold       2
#> 4    SSH000004          N1 CoupleHousehold       2
#> 5    SSH000005          N1 CoupleHousehold       2
#> 6    SSH000006          N1 CoupleHousehold       2

Validate Attribute Assignment

adder@validation_results[c("z_square","p_value",
                           "warning_required")]
#> $z_square
#> [1] 2.155412
#>
#> $p_value
#> [1] 0.9758728
#>
#> $warning_required
#> [1] FALSE

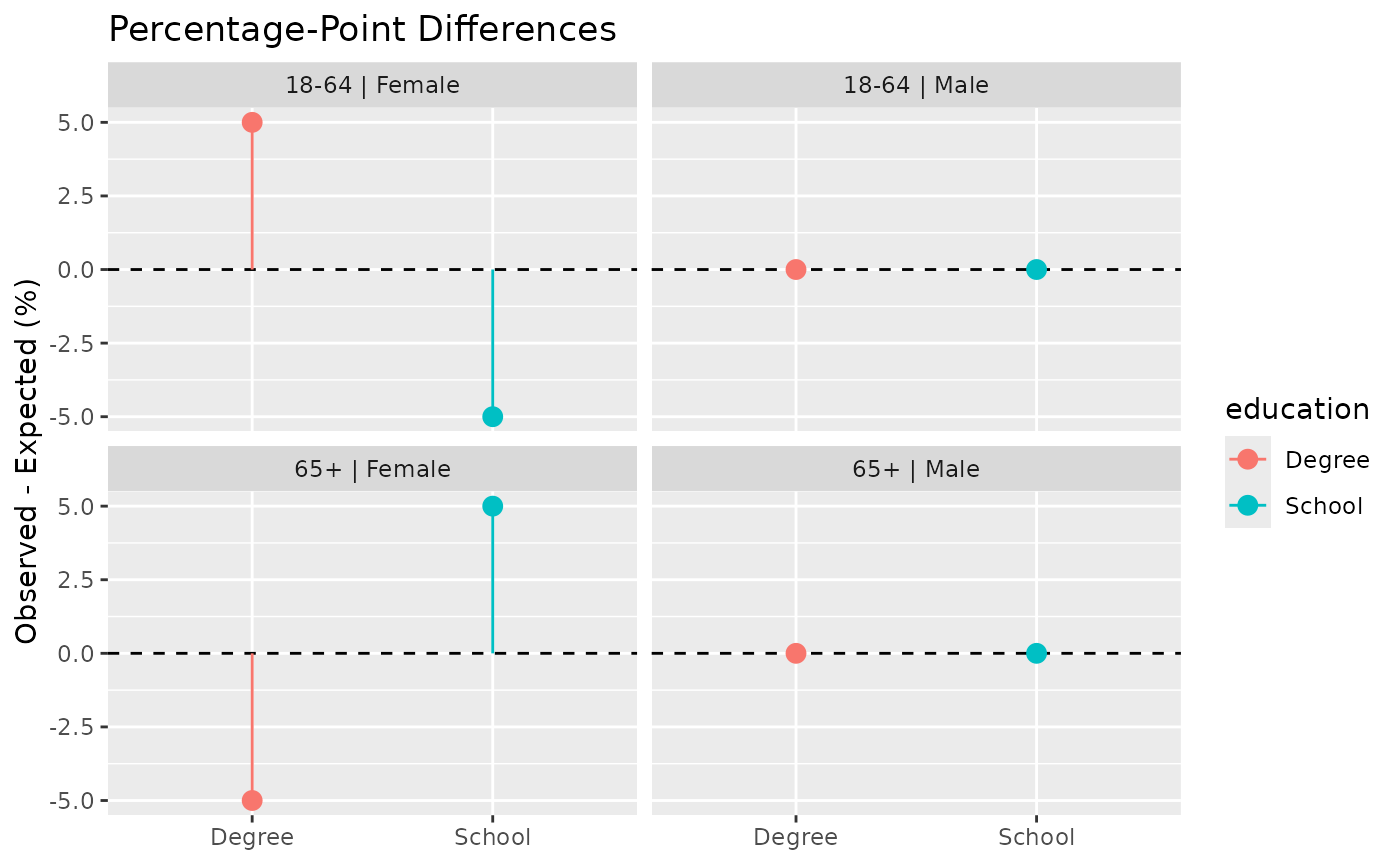

plot_validation_differences(adder@validation_results)

This workflow demonstrates the complete progression from aggregate demographic data to synthetic agents, enriched populations, synthetic households and validation outputs.

References

de Mooij J, Sonnenschein T, Pellegrino M, Dastani M, Ettema D, Logan B and Verstegen JA (2024).

GenSynthPop: generating a spatially explicit synthetic population of individuals and households from aggregated data.

Autonomous Agents and Multi-Agent Systems. https://link.springer.com/article/10.1007/s10458-024-09680-7
